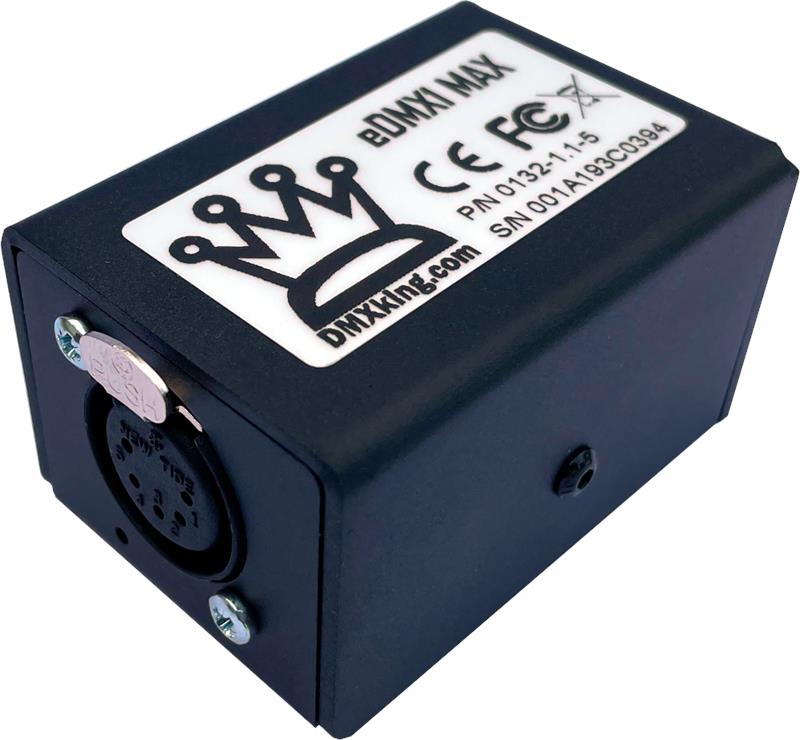

DMXking eDMX1 MAX

Compact and robust this single universe Ethernet DMX512 node suits a wide range of applications. With power supplied via a USB socket many power source options exist since almost any USB port or USB charger/power supply will work just fine including USB ports on many wireless routers. You choose 3-pin or 5-pin XLR so no inline adapters are required. Both DMX512 output and DMX512 input functions are supported along with E1.20 RDM. Designed and manufactured in New Zealand to the highest standards the eDMX1 is the perfect first step into DMX512 over Ethernet.

Compatible with: Windows, Mac OS X, Linux, iOS (iPhone/iPad), Android

Manufacturer part number: 0132-1.1

  • DHCP automatic network address by default - plugin and illuminate!
  • Supported operating systems: Any with Ethernet networking support. Windows, MAC OS, Linux, iOS, Android.
  • DMX512 Out or DMX512 In functionality over Art-Net / sACN E1.31
  • E1.20 RDM over Art-Net support.
  • Universe Sync Art-Net, sACN and Madrix Post Sync.
  • User configuration of Art-Net Node short and long names.
  • Compact tough metal enclosure.
  • Available with 3 pin or 5 pin XLR socket, no adapter purchase required.
  • External 5Vdc power input USB type C socket, used for power and configuration. Can be powered directly from computer USB ports.
  • Fully compatible with ALL software and hardware that supports Art-Net I, II, 3 & 4 and sACN protocols.
  • Fully compatible with lighting consoles capable of generating Art-Net or sACN protocol.
  • Configuration utility (Win/OSX) with basic Art-Net output/input test functionality (Win only).
  • Firmware updates can be performed by an end user.
  • Now even supports the Enttec Pro protocol over USB, can be used as a USB dongle in supported software like LightKey and QLab 5.
User Manuals
Configuration Software

eDMX MAX Firmware Release Notes

Version Description
4.0

Initial release. RDM support disabled.
4.1

Improved port LED intensity. Fixed startup hang with certain SD cards. Support for eDMX1 MAX.
4.2

DMX-IN recording issue fix. ArtNet subnet broadcast traffic issue fix – resolves problem with being unable to scan for (L)eDMX MAX units.
4.3

Initial release with USB DMX support.
4.5

Extensions to DMXking USB DMX protocol. Required update for USB DMX functionality.
4.6

Art-Net TimeSync. ArtPollReply changed to single universe per message. Art-Net RDM functionality enabled. DMX512 timing parameters adjustable. Art-Net UDP Port adjustable. Art-Net RDM Controller optional fixed IP and adjustable UDP Port. Diagnostics messages priority enhancements. Initial support for eDMX8 DIN MAX.
4.7

SD card detection improvements.
