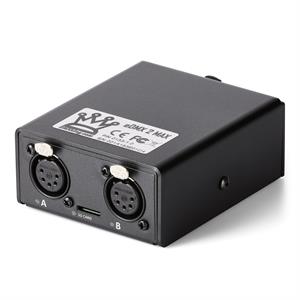

DMXking eDMX2 MAX

Perfect middle ground when you need more than 1 universe but without the expense and bulk of 4 universe nodes. We've incorporated both Art-Net/sACN and USB DMX in the same unit along with a Power over Ethernet option making this the most flexible 2 universe node around. Built tough and compact the eDMX2 PRO takes little space in your bag and has both USB and PoE power options available. Mount an eDMX2 PRO closer to the rig and run Ethernet cable back to the controller using PoE power.

With USB DMX and ArtNet/sACN capabilities the eDMX2 PRO gives you the best of both worlds. Run USB DMX from your laptop or PoE Ethernet ArtNet as part of a larger rig or even merge USB DMX from another lighting application with your main system. eDMX2 PRO is the most flexible interface on the market.

Supporting both DMX512 output and DMX512 input individually configurable on each channel along with Art-Net and sACN protocols the eDMX2 PRO is the perfect choice for temporary small to medium rigs. DMX merge functionality works from both Art-Net/sACN, DMX Input and USB DMX sources providing plenty of configuration possibilities. Designed and manufactured in New Zealand to the highest standards.

Compatible with: Windows, Mac OS X, Linux, iOS (iPhone/iPad), Android

Manufacturer part number: 0133-1.0

  • Static IP or DHCP network addressing.
  • Supported operating systems: Any with Ethernet networking support. Windows, MAC OS, Linux, iOS, Android.
  • Compatible with most USB DMX software suitable for ENTTEC USB Pro. Using built-in OS drivers.
  • eDMX2 MAX - 2x DMX512 Out or DMX512 In with Art-Net, sACN E1.31 and E1.20 RDM support
  • Merge 2 incoming Art-Net/sACN streams per output channel with both HTP and LTP options
  • Merge Art-Net/sACN + DMX input -> DMX output
  • Merge DMX input + USB DMX source -> DMX output
  • USB DMX enhanced mode for 2 Universe Out or 1 In 1 Out.
  • 1500V Isolation between every port.
  • Art-Net broadcast, Art-Net II, III & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support.
  • E1.20 RDM over Art-Net support.
  • Universe Sync Art-Net, sACN and Madrix Post Sync.
  • User configuration of Art-Net Node short and long names.
  • Compact tough metal enclosure.
  • Available with 3 pin or 5 pin XLR socket, no adapter purchase required.
  • Accessory IO port (10-pin) for external show triggering and future features.
  • Optional Power over Ethernet 802.3af compliant
  • etherCON for network connection and Neutrik XLR connectors.
  • External 5Vdc power input USB type C socket. Can be powered from computer USB port, USB charger unit, or PoE.
  • Fully compatible with ALL software and hardware that supports Art-Net I, II, 3 & 4 and sACN protocols.
  • Works with your existing console if Art-Net or sACN external nodes are supported.
  • Configuration utility (Win/OSX) including features to manage SD playback/record functionality.
  • Recording and playback to microSD card (not included). See eDMX MAX Record / Playback manual for details.
  • Standalone show playback without computer or network connection.
  • Firmware updates can be performed by end user.
User Manuals
Configuration Software

eDMX MAX Firmware Release Notes

Version Description
4.0

Initial release. RDM support disabled.
4.1

Improved port LED intensity. Fixed startup hang with certain SD cards. Support for eDMX1 MAX.
4.2

DMX-IN recording issue fix. ArtNet subnet broadcast traffic issue fix – resolves problem with being unable to scan for (L)eDMX MAX units.
4.3

Initial release with USB DMX support.
4.5

Extensions to DMXking USB DMX protocol. Required update for USB DMX functionality.
4.6

Art-Net TimeSync. ArtPollReply changed to single universe per message. Art-Net RDM functionality enabled. DMX512 timing parameters adjustable. Art-Net UDP Port adjustable. Art-Net RDM Controller optional fixed IP and adjustable UDP Port. Diagnostics messages priority enhancements. Initial support for eDMX8 DIN MAX.
4.7

SD card detection improvements.
